P. 17

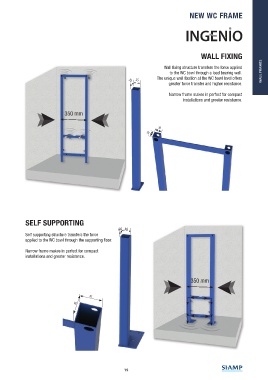

NEW WC FRAME
WALL FIXING
Wall fi xing structure transfers the force applied
to the WC bowl through a load bearing wall. WALL FRAMES
25 25 The unique wall fi xation at the WC bowl level offers
greater force transfer and higher resistance.
Narrow frame makes in perfect for compact
installations and greater resistance.
350 mm
30
30
SELF SUPPORTING
40 40
Self supporting structure transfers the force
Self supporting structure transfers the force
a
applied to the WC bowl through the supporting fl oor. pplied to the WC bowl through the supporting fl oor.
Narrow frame makes in perfect for compact w frame makes in perfect for compact
Narro
installations and greater resistance.
350 mm
45
45
15
