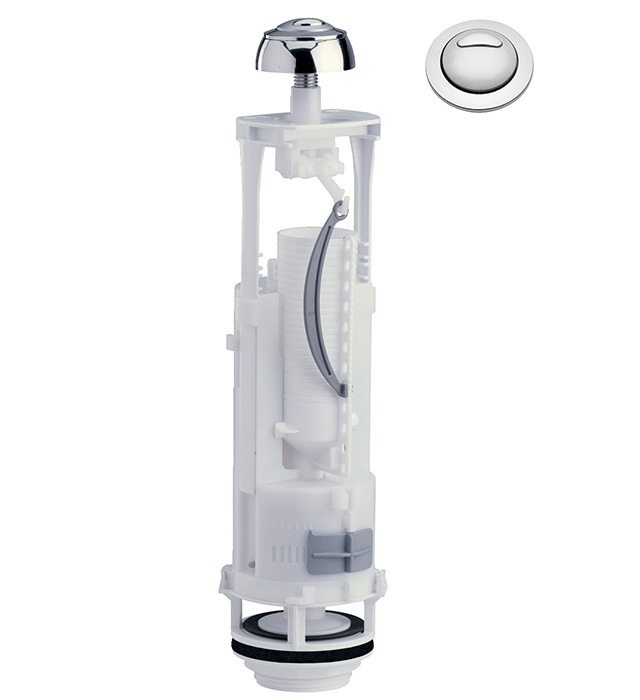

![Optima 49 flushing valve](http://www.siamp.co.uk/wp-content/uploads/optima49.jpg)
DescriptionTechnical DrawingsText For TendersDownloads
- Can be installed into plastic or ceramic cisterns
- Push button: dual flush
- Actuation effort below 20 Newton
- For lid holes ranging from 16 to 50mm, with or without collar depending on the diameter
- Button off-center +/- 15mm
- Stirrup: adjustable in increments of 12 mm
- Overflow can be cut in increments of 4mm
- Adjustable small flush, from 2l to 4.5l
- Adjustable deadwater level
- High flush rate of 3.5l/s
- Foam pan seal supplied for compensating pan irregularity
![Optima 49 technical drawings](http://www.siamp.co.uk/wp-content/downloads/drawings/optima49-drawing.jpg)
OPTIMA 49
Dual flush valve WRAS and NF certified, compact and water saving. The stirrup fixes the cistern lid once the button is screwed down and enables a non alignment position. Adjustable button with optional collar.
Adjustable height from 282 and 430 mm, lid hole from 16 to 50, discharge hole from 58 to 72 mm. Adjustable : small flush, over flow, dead water level.
Ref. | Barecode | Packing | Packing | Pallet Quantity |
|||
---|---|---|---|---|---|---|---|
Nb | M² | Kg | |||||
OPTIMA 49 | 32 4999 10 | 3 24723 007129 6 | Box | 14 | 0,08 | 9 | 210 |
OPTIMA 49 raised button | 34 5054 07 | 3 24723 004328 6 | Bag | 250 | 0,07 | 12.5 | – |
