Can be installed on BCM 790, BCM – BCU 350 and Intraslim B
DescriptionTechnical DrawingsText For TendersDownloads
- Lemon design
- Made from ABS
- Decorative versions:
- Bright chrome (bright chrome plated frame and large button and matt chrome finish for small button)

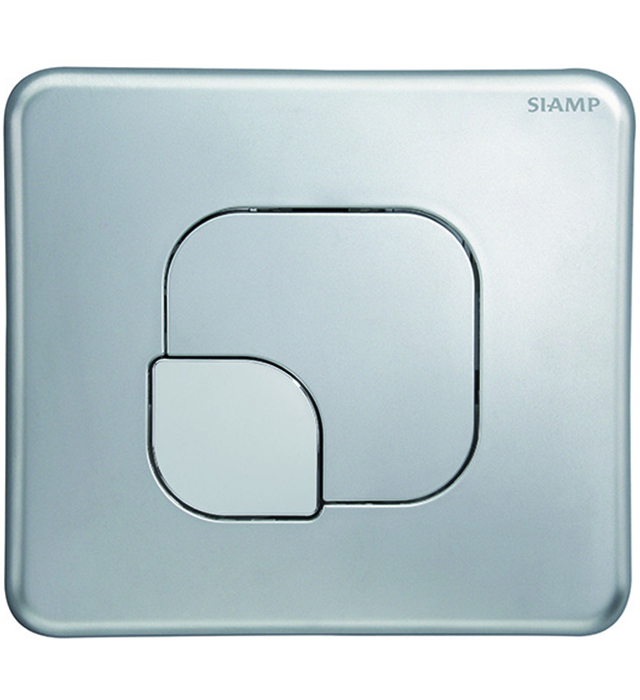

- Matt chrome (matt chrome finish for plate and large button, bright chrome plated small button)
- Dual flush
- Mechanical actuation
- Actuation force below 20 Newton
- Smooth actuating screws to avoid operating noise
- Hand cuttable fixing and actuation screws for adapting length to cladding
- Flush plate serves as an access point for reaching the cistern equipment
- Cladding thickness between 16 and 100 mm
LEMON
Réf: 31 18….. 10
Dual flush actuation plate, made from ABS, ………… finish. 2-year guarantee. Dimensions height 180 mm, width 200 mm and depth 18 mm.
Delivered with wall fixing frame, 2 fixing screws and 2 actuation screws. Necessary spanner.
| Ref. | Barecode | Packing | Packing | Pallet Quantity |
|||
|---|---|---|---|---|---|---|---|
| Nb | M² | Kg | |||||
| LEMON Bright chrome | 31 1814 10 | 3 24723 001680 8 | Carton | 40 | 0,096 | 15,6 | – |
| LEMON Matt chrome | 31 1813 10 | 3 24723 001679 2 | Carton | 40 | 0,096 | 15,6 | – |
