DescriptionTechnical DrawingsText For TendersDownloads
- Can be installed into plastic or ceramic cisterns
- Push button: dual flush
- Actuation effort below 20N
- For lid holes ranging from 40 to 44mm
- Over flow can be cut in increments of 5mm
- Adjustable small flush from 2l to 4.5l
- High flush rate of 3.5l/s
- Foam pan seal supplied for compensating pan irregularity

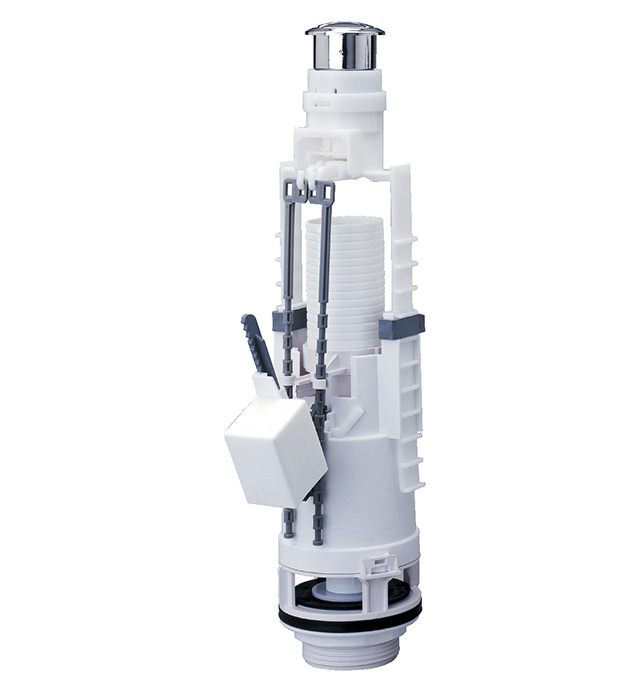

SKIPPER 45
Dual flush valve NF and WRAS certified, compact. 10 year guarantee. The stirrup fixes the cistern lid, once the button is screwed down and enables a non-alignment position.
Adjustable height from 305 and 455 mm, lid hole from 16 to 50, discharge hole from 58 to 72 mm. Adjustable : small flush, over flow, dead water level.
| Ref. | Barecode | Packing | Packing | Pallet Quantity |
|||
|---|---|---|---|---|---|---|---|
| Nb | M² | Kg | |||||
| SKIPPER 45 | 32 4560 10 | 3 24723 007132 6 | Box | 14 | 0,08 | 7,05 | 210 |
| SKIPPER 45/99B 1/2P component pack | 33 9950 07 | 3 24723 007142 5 | Bag | 15 | 0.08 | 10.25 | 225 |
